The complete assembling hydraulic actuator ELMO-GM 400x2/20
PURPOSE: The hydraulic actuator ELMO-GM 400×2/20 is intended for movement heavy loads up to 400 t on railway track.
Name ELMO-GM 400×2/20 interpretation:
ELMO - means electric and assembling equipment;
GM - means assembling hydraulic actuator;
400 - maximum weight of moving load, t;
2 - number of hydrocylinders;
20 - maximum pressure in hydraulic system, MPa.
The hydraulic actuator ELMO-GM 400×2/20 contains a pump unit YG4e1/20 (1 item on fig.1), 2 power hydrocylinders SGg 15/20 (5.1 - 5.2 items) connected to the pump unit with 4 pump high pressure hoses RVD 6/40 (9.1 - 9.4 items) 8 meters long each, 2 clamps (7.1, 7.2 items), 2 stops (8.1 – 8.2 items).

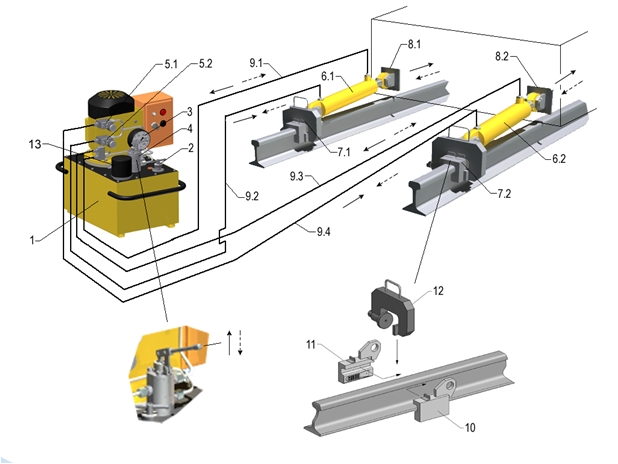

Figure 1 – Layout chart of the hydraulic actuator ELMO-GM 400×2/20
1 – the pump unit YG4e1/20; 2 – drain valve; 3 – manometer;
4 – hydraulic distributor; 5.1, 5.2 – throttle;
6.1, 6.2 – power hydrocylinders SGg 15/20;
7.1, 7.2 – clamps RZ-65; 8.1, 8.2 – stops;
9.1…9.4 – pump high pressure hose RVD 6/40;
10 – right claw; 11 – left claw; 12 – clamp; 13 – filter.
Claws blocking and release occur automatically. During idling claws deblock and move up to new starting position.The pump unit YG4e1/20
YG4 - type of the pump unit;
e - electric drive (3х380 V, 50 Hz, 2.2 kW);
1 - useful displacement at pessure from 0 to 20 MPa, sm³;
20 - maximum working pressure, MPa.
Dry weight of the pump unit is no more then 65 kg.

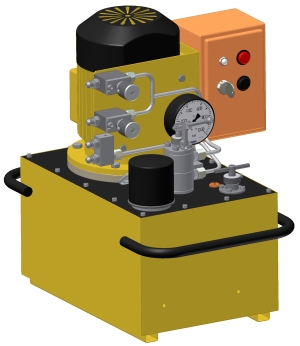

Figure 2 –The pump unit YG4e1/20
Tht power hydrocylinders SGg 15/20
SGg - a power hydrocylinders with a hydraulic return of piston;
15 - maximum operating effort, t;
20 - maximum pressure, MPa.
Weight of the power hydrocylinder is 40 kg;
Rod working stroke is 500 mm.
STANDARD DELIVERY SET
| Nomenclature | Purpose | Quantity |
| The pump unit YG4e1/20 | Providing of necessary specific technological effort in pump fluid of hydraulic system from 0 to 20 MPa | 1 |
| The power hydrocylinder SGg 15/20 | Providing of necessary technological effort | 2 |
| Claw RZ-65 | Fixation of hydrocylinder on rail during working stroke | 2 |
| Buffer stop | Place for hydrocylinder's rod join | 2 |
| Pump high pressure hose (Dу6) Ру 40 MPa, l=8m | Pump fluid feed from the pump unit to the power hydrocylinders | 4 |
| Spare parts, tools and accessories set | 1 |
